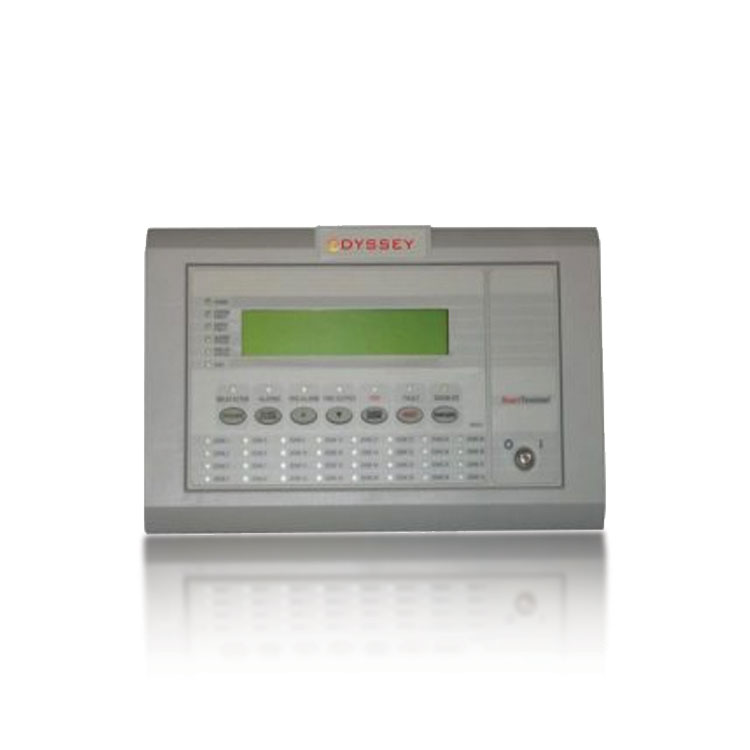

The Odyssey SmartTerminal has been designed to display the status of and provide limited controls for
the Odyssey Fire Alarm Control Panels (FACP) in multiple locations.
The SmartTerminal provides the following front panel controls:
Override – for overriding any delays that are set
Reset – to result faults and alarms
Evacuate – to an Evacuation condition at the FACP
Alarm Silence/Resound – to silence or resound alarms
Previous and Next – to scroll through faults and alarms
Communication between each SmartTerminal and the Odyssey Panel is provided by a RS485 communications bus.
A maximum of 30 SmartTerminal’s may be connected to the communications bus over a distance of 1.2Kms.
The SmartTerminal can be supplied with two different sized enclosures and is available as internally 24Vdc powered or externally 240Vac powered options.
Features
Extends the controls and status of the Odyssey Fire Alarm Control Panel
Up to 30 SmartTerminal’s can be connected to each Odyssey Fire Alarm Control Panel
Large LCD with Backlight
Internal Buzzer
Flush or Surface Mountable Enclosure
Control Enable Key Switch
Controls have tactile and audible feedback
| Model | Odyssey Smart terminal BX05, Odyssey Smart terminal BX1 W/PSU |
|---|
