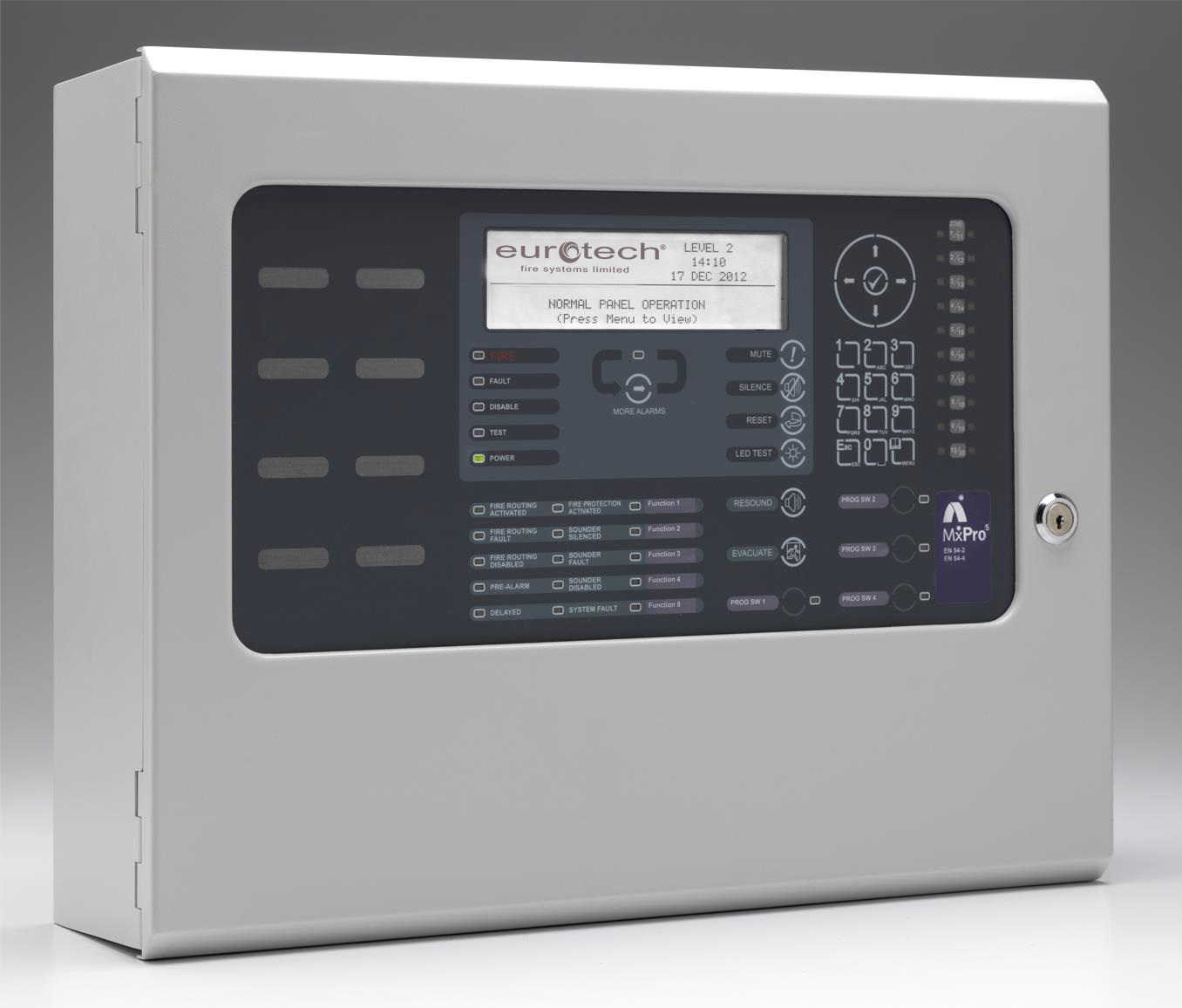

Eurotech 2 Loop Intelligent Fire Control Panel

Part Number EUR-5202N Categories ,

Talk to our specialists

Description

The Eurotech EUR-5202N 2 loop intelligent fire control panel is fully expandable from 1 – 2 loops and supplied with 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

Additional information

Further Description

The control panel consists of the latest dual flash-based microprocessor technology combined with a high resolution, high contrast, graphical LCD display and tactile keypad providing a simple select and click programming aid for engineer configuration and end user operation.
Powerful cause-and-effect programming and enhanced trace diagnostics make the panel suitable for a wide range of site applications from small to large complex multi-area systems.
Fully programmable onsite via the onboard alphanumeric keypad, or PC-NeT configuration software.

PC Software

An extensive suite of user-friendly Windows-based PC software programs has been developed to enhance your experience when using Eurotech Series of Fire panels. The suite incorporates a number of different programmes to include a configuration, service, logo and virtual panel tool to allow the flexibility of the equipment to be fully explored.

Network

Simply adding a network card allows the panel to communicate with any other Eurotech fire panel, remote terminal, or network peripheral, such as, ‘ipGateway™’ or BMS/Graphical Interface. The network operates as a true peer-to peer system and can be configured in a fault-tolerant loop or radial format.

Features

•Argus Vega protocol support
• Graphical LCD user interface and support for up to 200 fire zones by default allowing full EN54 compliance without additional hardware
• Dual flash-based microprocessor technology with real-time clock onboard
• Dedicated USB & RS232 serial port for direct PC or modem connection
• Installer friendly Auto-learn, Loop Detection and Onboard Scope facilities for ease of commissioning and fault finding
• Graphical display configurable for virtually any language
• Robust removable equipment chassis with plug-in connectors for simple fixing and cable termination
• Fully programmable via the onboard alphanumeric keypad, or PC configuration tools
• Integral ‘P-Bus’ for system expansion via available option cards
• Ad-NeT peer-to-peer network with up to 2000 zones
• Approved to BS EN54 part 2, 4 and 13
