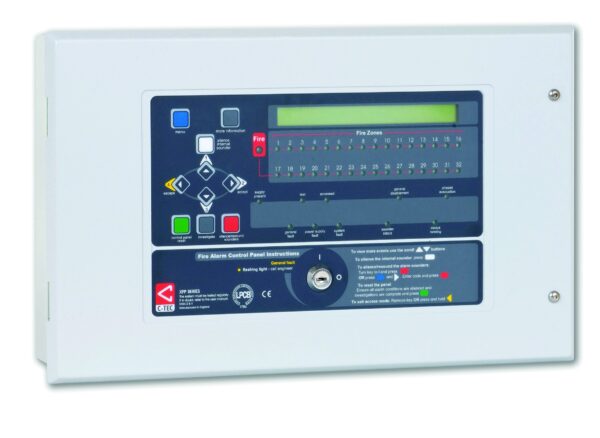

XFP 2 Loop 32 Zone Addressable Fire Panel (XFP502/H)

Description

C-TEC’s XFP two loop 32 zone addressable fire alarm panel offers high performance at a very competitive price.

LPCB certified to EN54 parts 2 & 4, it is supplied in durable metal enclosure, offers combined keypad or keyswitch entry to Access Levels 2 and 3 and is compatible with Hochiki’s ESP protocol.

Additional information

Additional Information	Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe’s best-selling addressable fire panels. Packed full of engineering features, the XFP502/H is also fully compatible with C-TEC’s Hush Button fire alarm solution and its new range of EN54 certified addressable sounders and VADs.
Key Features	• Compatibility with Hochiki ESP protocol. • Two independently programmable conventional sounder circuits. • Two programmable inputs. • A fault output relay and three programmable relay outputs with voltage free changeover contacts. • A selection of zone dependency/coincidence functions. • A day/night (building occupied/unoccupied) function. • An investigation delay period function. • Phased evacuation facility. • An alarm counter that records how many times the panel has been in alarm state. • Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop. • An integral EN54-4/A2 switch mode power supply. • Adjustable contamination levels. • Earth fault monitoring. • Combined keypad / keyswitch entry to Access Levels 2 and 3. • 999 event monitoring. • An intuitive Windows based upload-download PC program. • Optional flush-mounting bezel and glazed stainless steel enclosure also available. • Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.

Additional Information

Ideal for use in small stand-alone applications or in larger applications due to its ability to sit on network of up to 8 XFP master panels, it is one of Europe’s best-selling addressable fire panels. Packed full of engineering features, the XFP502/H is also fully compatible with C-TEC’s Hush Button fire alarm solution and its new range of EN54 certified addressable sounders and VADs.

Key Features

• Compatibility with Hochiki ESP protocol.
• Two independently programmable conventional sounder circuits.
• Two programmable inputs.
• A fault output relay and three programmable relay outputs with voltage free changeover contacts.
• A selection of zone dependency/coincidence functions.
• A day/night (building occupied/unoccupied) function.
• An investigation delay period function.
• Phased evacuation facility.
• An alarm counter that records how many times the panel has been in alarm state.
• Powerful short circuit protected loop drivers, capable of supporting up to 40 loop powered 10mA sounders per loop.
• An integral EN54-4/A2 switch mode power supply.
• Adjustable contamination levels.
• Earth fault monitoring.
• Combined keypad / keyswitch entry to Access Levels 2 and 3.
• 999 event monitoring.
• An intuitive Windows based upload-download PC program.
• Optional flush-mounting bezel and glazed stainless steel enclosure also available.
• Up to eight XFP main panels (any variant) can be connected onto a two-wire RS485 network. Alternatively, up to eight XFP repeaters can be connected to any non-networked main panel.
