Specialist Devices

Hochiki Intrincially Safe Compatible Sounder Module

This Sounder Control Module interfaces between the Hochiki Analogue system via a CHQ-DSC or conventional sounder O/P’s and the intrinsically safe sounder/beacon units via an intrinsically safe barrier.

The module provides line monitoring for open or short circuits on the wiring connected to both the safe and hazardous areas.

Key Features:

Provides dual sounder circuits
Provides fault-monitored input
Interfaces between loop and I.S. sounders/beacons
Fully monitored for short-circuits
Requires 24 V dc external power supply

Hochiki Intrincially Safe Sounder Interface Module

The module provides line monitoring for open or short circuits on the wiring connected to both the safe and hazardous areas.

Key Features:

Provides dual sounder circuits
Provides fault-monitored input
Interfaces between loop and I.S. sounders/beacons
Fully monitored for short-circuits
Requires 24 V dc external power supply

Hochiki Intrinsically Safe Weatherproof Conventional Call Point

Installation efficiency, flexibility and full compliance with the latest standards are at the heart of the new CCP-W-IS outdoor Call Point range.

Key Features:

Sealed to IP67
Unique “Plug & Play” installation concept
Total “Flex-Ability” in the choice of operating element
Anti-Tamper facility
Enhanced aesthetics and compact design
Fully approved to the latest standards
CPD Approval

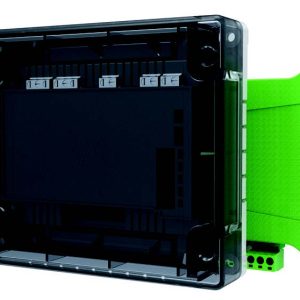

Hochiki Mains Relay Controller DIN Enclosure with SCI

Model CHQ-MRC/DIN(SCI) is a Single Input/Output Module, which provides a single, mains-rated relay output for the control of such devices as dampers, extractors or plant and equipment shutdown. The monitored input can be used for local power supply fault monitoring or as a general-purpose input.

The unit is supplied as a DIN Rail mountable version but is also available as a boxed module. Both models feature an integral short-circuit isolator. The CHQ-MRC/DIN(SCI) utilises simple DIL switches for reliable addressing.

Key Features:

Loop powered
Single loop address
Single mains rated relay contact
Relay Contact Rated at 250 V ac @ 5 A (resistive load only) & 48 V dc @ 2 A (resistive load only)
Auxiliary monitored input
DIN rail version available
Both models feature an integral short-circuit isolator

Hochiki Manual Call Point Covers

An acrylic hinged cover for the HCP-E(SCI) manual call point range which protects against accidental operation/vandalism.

Key Features

Easy to fit
Protects against accidental activation

Hochiki Manual Call Point with SCI “SMOKE VENT” (Orange)

The HCP-EO(SCI) is an Analogue Addressable orange call-point based upon the industry standard KAC world series housing and features easy to install, push-fit wiring terminals. The call point features the words “SMOKE VENT”.

Key Features:

Terminals can accommodate up to a 2.5 mm solid conductor
Orange casing
Features an integral SCI
Approved by LPCB to EN54-11:2001

Hochiki Marine Approved Photoelectric Smoke Sensor (Ivory Case)

The ALN-EN incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications.

This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms. The ALN-EN smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.

Key Features:

Removable, High Performance chamber
Twin LEDs allow 360 viewing – green when polling, turn red in fire
Locking mechanism (sensor to base)
Variable sensitivity
Electronically addressed
Pulsing/non-pulsing controlled from panel
Approved by LPCB & VdS
SIL Level 2 approved variants available
Available in white

Hochiki Mounting Base for Wall Sounders (Red)

Model YBO-R/3 is a Sounder Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors and designed specifically for the Hochiki range of wall sounders, the CHQ-WS2 Wall Sounder and the CHQ-WSB2 Wall Sounder Beacon.

It is supplied with square cable clamps for secure and reliable cable termination.

Hochiki Mounting Base for Wall Sounder (Red)

It is supplied with square cable clamps for secure and reliable cable termination.

Hochiki Mounting Base for Wall Sounders (White Case)

It is supplied with square cable clamps for secure and reliable cable termination.

Hochiki Multi-Heat Sensor (Ivory Case)

Model ATJ-EN is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESPAnalogue Addressable Protocol.

The ATJ-EN incorporates a Variable Temperature heat element and a Rate of Rise heatelement, both of which are controlled from the Control Panel, allowing either thermal
element or both elements simultaneously to be active in making the fire decision. Thesensor polling LEDs can also be controlled via the Control Panel (pulsing/non pulsing)

Hochiki Multi-Heat Sensor (White Case)

Model ATJ-EN is a Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol.

The ATJ-EN incorporates a Variable Temperature heat element and a Rate of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision. The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing)

Hochiki Multi-Sensor Photoelectric/Heat – Marine Approved (Ivory Case)

Model ACC-EN is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber.

The ACC-EN has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The ACC-EN smoke chamber can easily be removed or replaced for easy maintenance.

Hochiki Multi-Sensor Photoelectric/Heat (Black Case)

Model ACC-EN(BLK) is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber. The ACC-EN(BLK) has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing).

The ACC-EN(BLK) smoke chamber can easily be removed or replaced for easy maintenance.

Hochiki Multi-Sensor Photoelectric/Heat (White Case)

Model ACC-EN is a Multi-Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol, and incorporates a thermal element and High Performance photoelectric smoke chamber. The ACC-EN has three modes, which are controlled from the Control Panel, allowing either the optical element or thermal element or both elements to be active in making the fire decision. The sensor polling LEDs can be controlled via the Control Panel (pulsing/non-pulsing). The ACC-EN smoke chamber can easily be removed or replaced for easy maintenance.

Hochiki Photoelectric Smoke Sensor – Marine Approved (Ivory Case)

ALN-ENM is a Marine Approved Photoelectric Smoke Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ALN-ENM incorporates Hochiki’s newest High Performance Chamber Technology removing the need to use Ionisation Smoke Sensors in the majority of applications. This also allows the sensor threshold level to be increased, thereby improving the signal to noise ratio and reducing susceptibility to false alarms.

The ALN-ENM smoke chamber is easily removed or replaced for cleaning and utilises a unique improved baffle design which allows smoke to enter the chamber whilst keeping out ambient light.
