Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
Model YBN-R/3 is a Common Mounting Base, which is fully compatible with Hochiki’s ESP range of sensors. It is supplied with square cable clamps for secure and reliable cable termination and is also capable of driving a remote LED if required.
The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base. This combined unit will then detect and
isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the combined unit.
NOTE: A fitted sensor will still be powered when this device is isolating.
The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base. This combined unit will then detect and
isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the combined unit.
NOTE: A fitted sensor will still be powered when this device is isolating.
YBN-R/3(SCI)M is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop. The YBN-R/3(SCI)M is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
NOTE: A fitted sensor will still be powered when this device is isolating.
Model YBN-R/3(SCI) is a sensor mounting base featuring an integral short-circuit isolator which will detect and isolate short-circuits on the loop. When a short-circuit is detected during power up the unit will drop the power to the rest of the loop.
The YBN-R/3(SCI) is compatible with the ESP range of sensors and does not require a loop address. A remote fire LED facility is provided when a sensor is attached to the base.
NOTE: A fitted sensor will still be powered when this device is isolating.
Model YBO-R/SCI(WHT/SNDR) is a Loop Isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The YBO-R/SCI(WHT/SNDR) Base has been specifically designed to be compatible with the white wall sounder (CHQ-WS2(WHT)) and the white wall sounder beacon (CHQ-WSB2(WHT)).
The Base incorporates an amber LED to show when it is isolating a section of the loop. The YBO-R/SCI(WHT/SNDR) does not use an address, and has the same wiring configuration as the YBN-R/3 Sensor Base making it very simple to install. The YBO-R/SCI(WHT/SNDR) can also be used without a sounder; a cover (SI-CAP) can be fitted to conceal the wiring connections.
Key Features:
Model CHQ-SZM(HFP)-SCI is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is also available as a DIN Rail mountable version; with or without an integral short-circuit isolator. The unit utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-SZM(HFP)-SCI, increases the IP rating to IP65. The conventional zone on the CHQ-SZM(HFP)-SCI does not support any line continuity options; if Call Points are being interfaced they should be wired at the beginning of the zone.
The CHQ-SZM2/M(SCI) is a Marine Approved Single Zone Monitor designed to allow up to 6 marine approved conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features an integral short-circuit isolator.
The CHQ-SZM2/M(SCI) utilises simple DIL switches for reliable addressing. A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-SZM2/M(SCI), increases the IP rating to IP65.
Key Features:

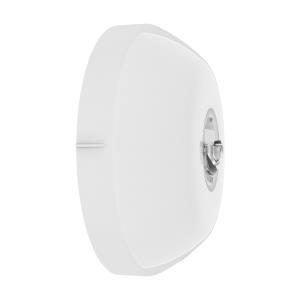

An addressable loop-powered wall beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage includes 5, 5.5 and 7 sqm*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.
An addressable loop-powered wall beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage includes 5, 5.5 and 7 sqm*2. The unit is designed to fit the YBN-R/3, YBN-R/3(SCI) or the YBO-BS base sounder and is available with an ivory, white or red casing with red or white LEDs.
Model CHQ-WS2(WHT) is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBO-R/3(WHT)) or the Isolator Base (YBO-R/SCI(WHT/SNDR)).
The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK(WHT) Weatherproof Kit, which consists of a specialised back box and gasket set.
Also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.
Key Features:
Model HCP-W(SCI) is a weatherproof Manual Call Point with integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-coloured LED, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-W(SCI) is operated – in these two states the LED will show red.
The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high level ESP interrupt. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.
Key Features:
Please Note: the unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. An optional glass element is also available.
Model ACB-EW is a Waterproof Multi-Heat Sensor, which is fully compatible with Hochiki’s ESP Analogue Addressable Protocol. The ACB-EW incorporates a variable Fixed Temperature heat element and a Rate Of Rise heat element, both of which are controlled from the Control Panel, allowing either thermal element or both elements simultaneously to be active in making the fire decision. The sensor polling LEDs can also be controlled via the Control Panel (pulsing/non-pulsing). Rated to IP67, the unit can be used externally and is supplied with its own fixing base which is used to fix the sensor. Flying leads from the sensor connect directly to the loop via waterproof connectors.
