Hochiki Dual Zone Monitor – DIN Enclosure with SCI

Model CHQ-DZM/DIN(SCI) is a Dual Circuit Zone Controller designed to allow up to 60 conventional detectors (30 on each zone) to be interfaced to Hochiki’s ESP analogue addressable system. The unit also features a Schottky Diode line continuity option, when used inconjunction with the optional LCMU.

Full monitoring against malfunction or disconnection, together with a self-test feature through the ESP protocol, ensure the integrity of the CHQ-DZM/DIN(SCI) at all times. The unit utilises simple DIL switches for reliable addressing. It is also available as a boxed module (CHQ-DZM(SCI)). Both models feature an integral short-circuit isolator.

NOTE: When Resistive EOL option is chosen the conventional zone on the CHQ-DZM/DIN(SCI) does not support any line continuity options, therefore if Call Points are being interfaced they should be wired at the beginning of the zone.

Key Features:

Single loop address
Supports two independent zones of conventional detectors
Both zones fully monitored for short/open circuit
Requires an auxiliary 24 V dc supply
Also available as a boxed module
Both models feature an integral short-circuit isolator
Approved by LPCB

Hochiki Glass Element for Call Point – with Hochiki logo

Glass Element for Call Point – with Hochiki logo

Hochiki Addressable Addressable Loop Powered Beacon (White Case, Amber Lens) – non EN54-23 compliant

The CHQ-AB range consists of addressable loop-powered Beacons, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casings exactly match the Hochiki ESP Sensor range in shape and colour providing seamless integration. The units can be used on the Standard ESP Base (YBN-R/3), the Base Sounders (CHQBS or YBO-BS), the Base Sounder Beacon (YBO-BSB) or the Short-Circuit Isolator Base (YBO-R/SCI).

High Intensity LED technology

Variable flash frequency
Addressable via Hand Held Programmer (TCH-B200)
Up to 127 devices per loop
Approved by VdS

Hochiki Addressable Beacon – Ivory case, red lens (non EN54-23 compliant)

The CHQ-AB range consists of addressable loop-powered Beacons, which are fully compatible with Hochiki’s ESP Range of Bases.

The Beacons have the ability to be turned on very quickly using a group command and are synchronised to flash at the same time. The innovative high-intensity LEDs and lens design produces a highly visible flash whilst the casing exactly matches the Hochiki ESP Sensor range in shape and colour providing seamless integration. Lenses are available in red (CHQ-AB(RED)), amber (CHQ-AB(AMB)) or blue (CHQ-AB(BLU)).

Can be used on Standard ESP Base (YBN-R/3), Base Sounder (CHQ-BS) or the Short-Circuit Isolator Base (YBO-R/SCI).

Features

High Intensity LED technology
1Hz flash frequency
Addressable via Hand Held Programmer (TCH-B100)
Up to 127 devices per loop
Low current consumption
Available in 3 lens colours
Approved by VdS

Hochiki Addressable Call Point PCB

The CHQ-CP2 is a loop powered single input monitor unit designed to be used as a call point module for special applications such as addressable key-switches and explosion proof call points. The default device type allocated by the Fire Alarm Control Panel will be a call point.

Hochiki Addressable Call Point with SCI (Red)

The Hochiki HCP-E is a Manual Break Glass Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The Hochiki HCP-E incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing for communications polling and is continuously lit when the HCP-E is operated. The unit is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly.

The device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring. The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing and the unit can also be flush mounted if required. An optional glass element is also available.

Key Features:

Fast response
Integral short-circuit isolator
Bi-coloured status LED
Non-frangible element fitted as standard (conforms to EN54)
Addressed with TCH-B100 Hand Held Programmer
Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
Different colour options available
LPCB Approved to EN54

Hochiki Addressable Call Point with SCI (Yellow)

Model HCP-E/Y is a Manual Call Point, which is fully compatible with Hochiki’s ESP analogue addressable protocol.

The HCP-E/Y incorporates a red LED mounted on the front cover, which can be selected as pulsing/non-pulsing* for communications polling and is continuously lit when the HCP-E/Y is operated.

The unit is operated by pressing the EN54 compliant non-frangible (plastic) element and, once operated, produces a high level ESP interrupt, allowing the control panel to respond very quickly. A built in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.

The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. The unit can be flush mounted as supplied. For surface fixing a suitable back box such as the SR MOUNTING BOX is required (sold separately).

Key Features:

Fast response
Status LED
Non-frangible element fitted as standard (conforms to EN54)
Addressed with TCH-B100 Hand Held Programmer
Surface or flush mounting (if surface mounting, requires SR MOUNTING BOX, sold separately)
LPCB Approved to EN54

Hochiki Addressable Remote Indicator – Ivory case, clear lens (non EN54-23 compliant)

Addressable Remote Indicator – Ivory case, clear lens (non EN54-23 compliant)

Hochiki Addressable Remote Indicator (White Case, Clear Lens) – non EN54-23 compliant

The CHQ-ARI(WHT) is a loop-powered Addressable Remote Indicator, with high-intensity LEDs and a Fresnel lens design which produces a highly visible signal.

The casing exactly matches the Hochiki white ESP sensor range in shape and colour providing seamless integration.

The unit can be used on the standard white ESP base (YBN-R/3(WHT)), the white base sounder (YBO-BS(WHT)), the white base sounder beacon (YBO-BSB(WHT)) or the white short-circuit isolator base (YBO-R/SCI(WHT)).

Key Features:

High Intensity LED technology
Addressable via Hand Held Programmer (TCH-B100)
Up to 127 devices per loop
Approved by VdS

Hochiki Addressable Wall Beacon (Red Body Red LEDs)

The CHQ-WB(RED)/RL is an Addressable Loop-Powered Wall Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Various coverage volumes available based on 2.4m ceiling height, include 5m, 6m and 7m. The unit is designed to fit the YBO-R/3(RED) and YBO-R/SCI(RED) bases. This model features a red case and red LEDs.

Key Features:

EN54-23 compliant
Loop powered
High intensity flash
Range of coverage volumes
Red LEDs
Colour-matched with existing sensor range

Hochiki Analogue Addressable Loop-Powered Beacon (White Case, Red Lens)

The CHQ-AB(WHT) is an addressable loop-powered Beacon, with high-intensity LEDs and a Fresnel lens design which produces a highly visible flash. The casing exactly matches the Hochiki ESP white sensor range in shape and colour providing seamless integration. The unit can be used on the Standard ESP white base (YBN-R/3(WHT)), thewhite base sounder (YBO-BS(WHT)), the base sounder beacon (YBO-BSB(WHT)) or the white short-circuit isolator base (YBO-R/SCI(WHT)

Key Features:

High Intensity LED technology
Variable flash frequency (dependant on control panel compatibility)
Addressable via Hand Held Programmer (TCH-B100)
Up to 127 devices per loop
Red lens colour also available in amber

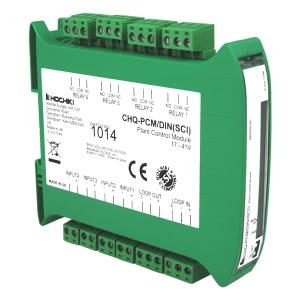

Hochiki Analogue Plant Control Module

The CHQ-PCM/DIN(SCI) is a loop powered input/output module with four independent change-over relay outputs and four monitored inputs. The outputs feature N/O and N/C volt free contacts and can be driven separately under the control of the fire alarm panel, to be used for the control of devices such as dampers or for plant and equipment shutdown. The four inputs are provided for local fire and fault monitoring and these are fully monitored for open and short circuit, which if required, can be enabled or disabled in pairs using a two-way DIL switch. Note: The state of the relay contacts will be indeterminate until the unit is powered.

Single loop address
Loop powered
4 change-over relay outputs
4 independent inputs for monitoring of volt-free contacts
Each input can be configured to monitor either Normally Open or Normally Closed contacts
Boxed module version available
Both models feature an integral short-circuit isolator
Approved by LPCB

Hochiki Analogue Plant Control Module with SCI

The CHQ-PCM(SCI) is a loop powered input/output module with four independent change-over relay outputs and four monitored inputs. The outputs feature N/O and N/C volt free contacts and can be driven separately under the control of the fire alarm panel, to be used for the control of devices such as dampers or for plant and equipment shutdown. The four inputs are provided for local fire and fault monitoring and these are fully monitored for open and short circuit, which if required, can be enabled or disabled in pairs using a two-way DIL switch.

The unit is also available in a DIN Rail mountable enclosure – CHQ-PCM/DIN(SCI). A back box is also available (CHQ-BACKBOX) which, when used in conjunction with the CHQ-PCM(SCI), increases the IP rating to IP65. When using heavy cables we recommend the use of the SMB-1 Module Enclosure in conjunction with the SMB-ADAPTOR plate.

Key Features:

Single loop address
Loop powered
4 change-over relay outputs
4 independent inputs for monitoring of volt-free contacts
Each input can be configured to monitor either Normally Open or Normally Closed contacts
DIN rail version available
Both models feature an integral short-circuit isolator
Approved by LPCB

Hochiki Analogue Wall Sounder (White)

Model CHQ-WS2 is an addressable loop powered Wall Sounder innovatively designed to provide a range of tones and volumes with a maximum output of up to 102dB(A) (±2dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBO-R/3(RED)) or the Isolator Base (YBO-R/SCI(RED)). The sounder is IP rated to IP21 for internal use but it can be made weatherproof by utilising the WS2-WPK Weatherproof Kit, which consists of a specialised back box and gasket set.

Also incorporates an auto shutdown mode which allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, ideal for minimising noise pollution.

Key Features:

Loop Powered
Single Loop Address – addressed via the TCH-B100 Hand Held Programmer
Variable Sound Output 90 ~ 102 dB(A) (+/-2 dB(A)) output at 1 metre
Fits Hochiki Standard or Isolator Base
Weatherproof Kit available
51 User-Selectable Tones (all tones EN54-3 compatible)
Also available in white
Approved by LPCB & VdS

Hochiki Base Mounting Adaptor White

The YBD-RA(WHT) Surface Wiring Adaptor allows the majority of Hochiki Sensors/Detectors and their Mounting Bases to be fitted flush against a fixing surface whilst also allowing surface wiring (without conduit) to be connected.

The adaptor features four 9mm x 8mm knock-outs for cables/wires allowing surface-fixed wiring to be connected to an appropriate mounting base (depending on application). The adaptor is moulded in ivory white ABS as standard, which allows seamless integration with the majority of mounting bases and associated sensors and detectors.

Key Features:

Compatible with the majority of existing Analogue and Conventional bases
Colour matches standard Hochiki Analogue and Conventional sensor/detector/base ranges
4 pre-moulded knock-outs provide wiring entry
Low profile – only 16mm

Hochiki Base Sounder – Ivory case

Model YBO-BS is an addressable loop powered Base Sounder innovatively designed to give a range of tones and volumes with a maximum output of up to 98 dB(A) (±2 dB(A)) with low current consumption. The unit is designed to fit to the Standard Base (YBNR/3) or the Isolator Base (YBO-R/SCI – from Batch Number 6044) and can be fitted with any of the ESP Range of Sensors, Beacons or Remote Indicators. The unit can also be converted into a wall sounder with the simple addition of a Cap (SI/CAP). The sounder is Ingress Protection rated to IP21 and for internal use only. An Auto-Shutdown feature allows the user to set a fixed time within which the sounder will operate, before automatically silencing itself, cutting noise pollution.
