The Odyssey Intelligent Optical Smoke Detector works using the light scatter principle and is ideal for applications where slow-burning or smouldering fires are likely.
The Odyssey Intelligent Heat Detector monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature. The Odyssey range features two heat detectors, standard and high temperature. The standard heat detector is classified as an A2S device and will report an alarm at 55°C. The high temperature detector, classified as a CS device, will report an alarm at 90°C.
The Odyssey Heat Detector monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature. The Odyssey range features two heat detectors, standard and high temperature. The standard heat detector is classified as an A2S device and will report an alarm at 55°C. The high temperature detector, classified as a CS device, will report an alarm at 90°C.
The Odyssey Intelligent Multi-Sensor Detector contains an optical smoke sensor and a thermistor temperature sensor whose outputs are combined to give the final analogue value.
All detectors in the Odyssey Intelligent range, including the Odyssey Intelligent Standard Base fit the Intelligent Mounting Base. The Mounting Base is a low insertion force base with stainless steel contacts for the detector terminals. XPERT cards are supplied with all bases.
The Isolator is placed at intervals on the loop and ensures that, in the case of a short circuit, only the section between the isolators will be affected. When the short circuit is removed, the isolators automatically restore power and data to the isolated section. The Isolator can only be used with an Isolator base and will not fit a standard addressable base. The Isolator Base is only suitable for use with the Isolator.
Key Features:
The Odyssey Isolating Base senses and detects short-circuit faults on Odyssey loops and spurs.
The Sounder Beacon Base with visual indicater is a loop-powered sounder and visual indicator combined with a standard Intelligent Mounting Base. It is used to signal a fire alarm in enclosed areas.

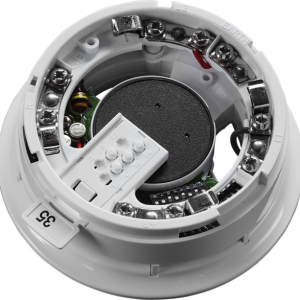

The Integrated Base Sounder comprises of a base sounder with integral mounting base and is for use with the Odyssey range. It is designed for indoor use.
The Ancillary Base Sounder is a local-area sounder designed for indoor use. It can be connected only to detection systems using Odyssey detectors and control panels with appropriate software.

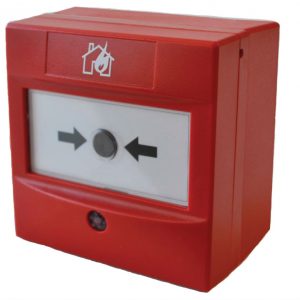

The Odyssey Manual Call Point has a highly visible alarm indicator which can be seen from up to 10 metres away. When activated, the manual call point interrupts the polling cycle for a fast response. A combined LED indicator and front reset mechanism allows for a quick and simple reset.

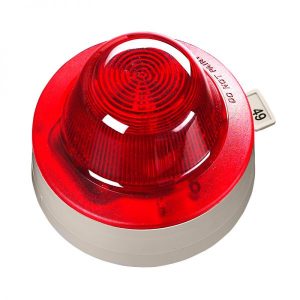

The Loop-Powered Visual Indicator is a local-area visual indicator designed for indoor use. The Visual Indicator has been developed as a supplement to sounders for use in situations where there is a risk that sounders will not be heard.

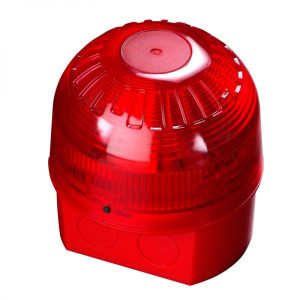

The Intelligent Open-Area Beacon Visual Indicator has been developed for use in situations where there is a risk that sounders will not be heard.

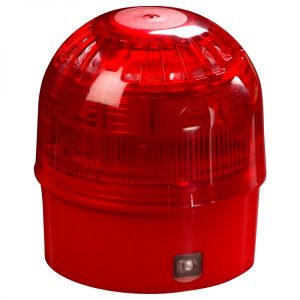

The Intelligent Open-Area Sounder Beacon Visual Indicator is designed for use in open areas and can be connected to an Odyssey system.

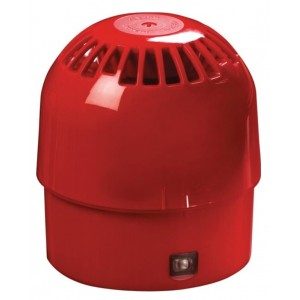

The Intelligent Open-Area Sounder has been designed for use in open areas and can be connected to any Odyssey system.

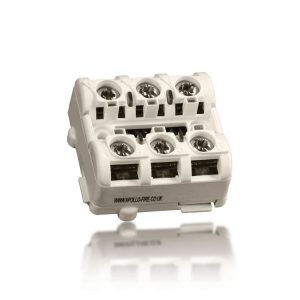

The Odyssey Mini Switch Monitor is an interface within an entirely new housing. This allows the unit to be fitted onto a standard 35mm DIN-Rail (using a twist-click motion) or mounted within an enclosure, for example a manual call point.
It is designed to monitor the state of one or more single pole, volt-free contacts connected on a single pair of cables and to report the status to Odyssey compatible analogue addressable control equipment.
