The optical detector has been designed with a unique symmetrical chamber.
The chamber ensures optimum air entry from all directions and offers immunity to ambient light into the detectors.
A drift compensation algorithm maintains alarm sensitivity thresholds effectively extending time between maintenance periods.
The thermal detector incorporates a single centrally positioned NTC thermostat that continuously samples temperature variations in the protected area. The detector its self can be configured as a rate of rise class detector A1R or high temperature class B heat detector.

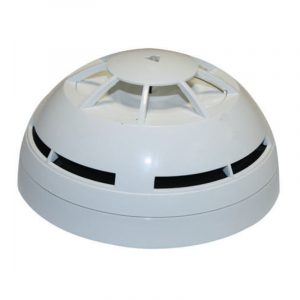

The 100-2222V multi-criteria detector combines optical and thermal detection capability providing early fire warning with a high level of false alarm rejection. A drift compensation algorithm maintains alarm sensitivity thresholds effectively extending the time between maintenance periods. A single centrally positioned thermistor continuously samples the temperature variation in the protected area.

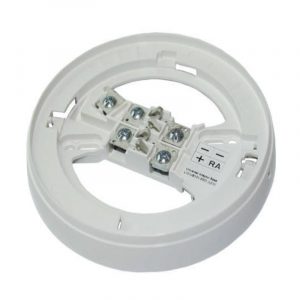

Conventional detector low profile mounting base. Secure and reliable cable termination Fitted with an alarm current limitation resistor to provide continuity during detector removal. A useful terminal provides remote indicator output, & accepts 2.5mm cables.
Conventional detector low profile mounting base. Secure and reliable cable termination The Base does not provide line continuity during detector removal. A useful terminal provides remote indicator output, & accepts 2.5mm cables.

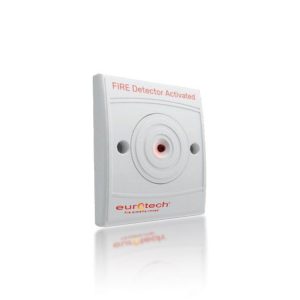

The RIU Remote Indicator Unit is used to give a remote indication of the status of a single or groups of fire detectors in alarm state utilising
an LED with a wide area of illumination and high on/off contrast.
The units are compatible with the majority of conventional and addressable systems and can also be used for security
and process control applications.
The standard version is a single gang flush mount unit, with or without ‘Fire Detector Operated’ text and also available
with a deep back box for surface mounting.
The EURVC-SB Conventional Wall Sounder VAD forms the core of our EN54-23 modular visual alarm device (VAD) range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module or wireless module. All devices are weather proof therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.
SyCall is a resettable manual call point packed with unique and innovative features. It has been designed to obtain maximum visibility, high reliability in operation and pleasant aesthetical appearance and is fully approved to EN54-11.
Six modes of operation are achievable simply by choosing the appropriate internal connection terminals at the time of installation. This solution has been adopted to address the need to stock multiple units commonly seen in many other popular types of call points on the market.
The unit is highly visible in both the alarm and non-alarm state. Front facing LED and sideways facing light tubes allow the easy discovery of an activated call point.
SyCall is a resettable manual call point packed with unique and innovative features. It has been designed to obtain maximum visibility, high reliability in operation and pleasant aesthetical appearance and is fully approved to EN54-11.
The SyCall manual call point also comes in a 2 wire (Sav-Wire) variant.
Six modes of operation are achievable simply by choosing the appropriate internal connection terminals at the time of installation. This solution has been adopted to address the need to stock multiple units commonly seen in many other popular types of call points on the market.
The unit is highly visible in both the alarm and non-alarm state. Front facing LED and sideways facing light tubes allow the easy discovery of an activated call point.

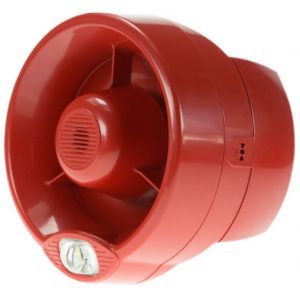

The EVTB 24Vdc sounder beacon is part of the EVTG family of products designed for use with conventional fire alarm
systems including two wire (SAV-WIRE®) and other general 24Vdc applications. The sounder function, like all EVTG products, comes as standard with 32 tones. The beacon function has been designed for maximum all-round visibility, coupled with low power consumption utilising an array of energy efficient LEDs. The sounder function features a two-stage alarm override which is activated by a third negative wire from the fire panel. Both the sounder and beacon functions are fully synchronised. The product can also be used as a beacon only which is easily selected by a DIL switch at the time of installation.

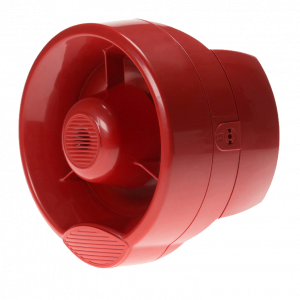

The EURVC-S Conventional Wall Sounder forms the core of our modular alarm device range. The unit can either be used as a standalone conventional device or as an intelligent unit by the addition of a wired module or wireless module. All devices are weather proof, therefore this combined with the modular approach means the majority of applications can be achieved with very few stock components. The unit is equipped with 3 levels of volume adjustment and 32 recognised tones which can be set via the control equipment or locally at the sounder.
The EVTG family of sounders has been designed to cover a wide spectrum of applications. The 24 volt EN54-3 approved version is for use with conventional fire alarm systems including two wire (SAV-WIRE®) and as standard comes with 32 tones. The sounder is supplied with a two stage alarm override which is activated by a third negative wire from the fire panel.
All tones have been selected to comply with the latest sound patterns and frequencies used throughout the world. All tone options are fully synchronised. The sounder function has been fully approved to EN54-3 by the LPCB and VdS on tones 1, 8, 11, 25 and 27.
The VBL 6″ motorised bell has been designed to offer maximum performance combined with rapic installation and a sleed low profile appearance. The bell is used for a wide range of alerts including fire alarm. The unit comes complete with a tamper resistant hex bolt and for easy installation an allen key is provided.
The exciting new range of Identifire products has been developed to provide the Fire, Detection and Alarm sector with a variety of sleek, aesthetically-pleasing evacuation and alarm accessories that offer a consistent look and feel across the entire range.
What sets Identifire apart is that it is the only group of evacuation and alarm products available on the market that allows for both flush and surface mounting across the range. This unique flush mounting ability and square from gives this range continuity and an aesthetic edge over its competitors.

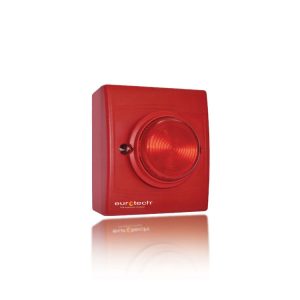

Our VID design is superior in performance with very bright LEDs and consistent performance. If a VAD is not required, use of our TriTone with VID will mean that the beacon is clearly visible when required.
Key Features:
The EVSO base sounder is for use with conventional fire alarm systems, including two wire (SAV-WIRE®) and is designed to accept most leading detector bases and offers a cost-effective solution to sounder installation. The low profile sounder is supplied with 32 tones, along with a two stage alarm override which is activated by a third negative wire from the fire panel.
All tones have been selected to comply with the latest sound patterns and frequencies used throughout the world. All tone options are fully synchronised. This sounder has been fully approved to EN54-3 by the LPCB and VdS on tones 1, 3, 11, 25 and 27.
When a detector is not fitted to the sounder, a blank cover plate is available so that the unit can be used as a standalone sounder.
The exciting new range of Identifire products has been developed to provide the Fire, Detection and Alarm sector with a variety of sleek, aesthetically-pleasing evacuation and alarm accessories that offer a consistent look and feel across the entire range.
What sets Identifire apart is that it is the only group of evacuation and alarm products available on the market that allows for both flush and surface mounting across the range. This unique flush mounting ability and square from gives this range continuity and an aesthetic edge over its competitors.

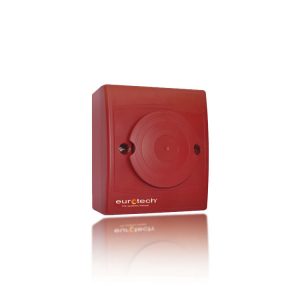

A simple sounder with a great story. Able to be flush or surface mounted with no effect on performance. Available in red or white, TriTone can be customised with customers’ logos or other text.
Key Features:
