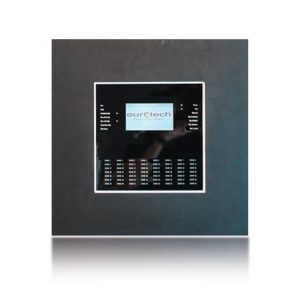

The Toccare® Touch Screen Fire Alarm Panel is one of the slickest fire alarm panels on the market and combined with innovative features and functionality, is now set to become the most sought-after panel
currently available.

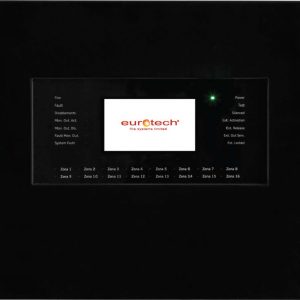

The Toccare Mini Touch Screen Panel is the Toccare panel’s smaller brother. This fire alarm control panel comes in a smaller package, yet still delivers reliable usage for the end-user.
The Toccare Lite Touch Screen Panel is the Toccare panel’s smaller brother. This fire alarm control panel comes in a smaller package, yet still delivers reliable usage for the end-user.

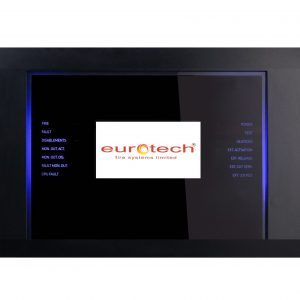

The Toccare Repeater Panel is an aesthetically pleasing device that repeats information from the main control panel.

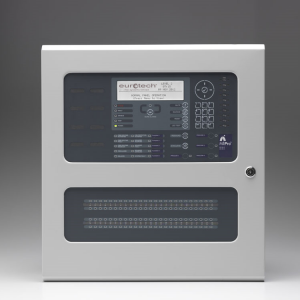

The Eurotech 4 loop intelligent fire control panel is fully expandable from 1 to 4 loops and supplied with 4 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 System LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

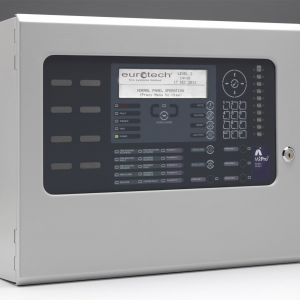

The Eurotech EUR-5202N 2 loop intelligent fire control panel is fully expandable from 1 – 2 loops and supplied with 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

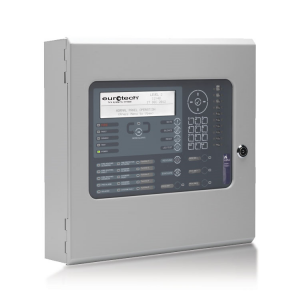

The Eurotech 1 loop intelligent fire control panel is supplied with a single loop driver card, 2 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels, and 25 system LEDs for information purposes. There are also 4 programmable function buttons with LED indication for confirmation of operation.

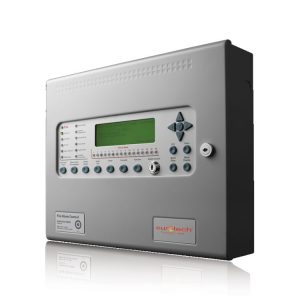

Evotech AS is a very versatile range of open protocol fire alarm control panels compatible with existing Evotech fire alarm panel technology.
Available with one or two detection loops capable of hosting up to 240 Eurotech devices. Evotech AS uses leading edge microprocessor based electronics to provide a flexible control system with high reliability and integrity.
Suitable for all small to medium sized fire detection systems, Evotech AS control panels can be expanded and networked to become part of a much larger systems if the need arises, therefore providing a future proof solution for any installation.
With its large graphic display and ergonomic button and indicator layout, the Evotech AS control panel is simple and straight forward to understand for installers, commissioning engineers and end users alike.
Evotech AS Lite is a very versatile range of open protocol fire alarm control panels compatible with existing Evotech fire alarm panel technology. Available with one or two detection loops capable of hosting up to 240 Eurotech devices. Evotech AS Lite uses leading edge microprocessor based electronics to provide a flexible control system with high reliability and integrity.
With its large graphic display and ergonomic button and indicator layout, the Evotech AS Lite control panel is simple and straight forward to understand for installers, commissioning engineers and end users alike.

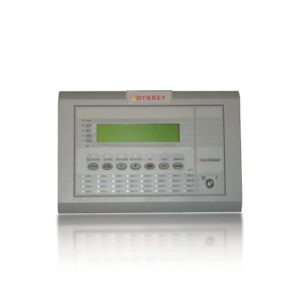

The Odyssey SmartTerminal has been designed to display the status of and provide limited controls for
the Odyssey Fire Alarm Control Panels (FACP) in multiple locations.
The SmartTerminal provides the following front panel controls:
Override – for overriding any delays that are set
Reset – to result faults and alarms
Evacuate – to an Evacuation condition at the FACP
Alarm Silence/Resound – to silence or resound alarms
Previous and Next – to scroll through faults and alarms
Communication between each SmartTerminal and the Odyssey Panel is provided by a RS485 communications bus.
A maximum of 30 SmartTerminal’s may be connected to the communications bus over a distance of 1.2Kms.
The SmartTerminal can be supplied with two different sized enclosures and is available as internally 24Vdc powered or externally 240Vac powered options.
Features
Extends the controls and status of the Odyssey Fire Alarm Control Panel
Up to 30 SmartTerminal’s can be connected to each Odyssey Fire Alarm Control Panel
Large LCD with Backlight
Internal Buzzer
Flush or Surface Mountable Enclosure
Control Enable Key Switch
Controls have tactile and audible feedback

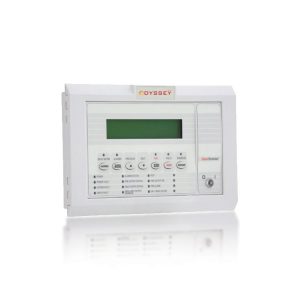

The Odyssey Plus SmartTerminal has been designed to display the status of and provide limited controls
for the Odyssey Plus Fire Alarm Control Panel (FACP) in multiple locations.
The SmartTerminal provides the following front panel controls:
• Override – for overriding any Delays that are set.
• Reset – to result faults and alarms
• Evacuate – to an Evacuation condition at the FACP
• Alarm Silence/Resound – to silence or resound Alarms
• Previous and Next – to scroll through faults and alarms
Communication between each SmartTerminal and the Odyssey Plus Panel is provided by a RS485
communications bus.
A maximum of 30 SmartTerminal’s may be connected to the communications bus over a distance of 1.2Kms.
The SmartTerminal can be supplied with two different sized enclosures and is available as internally 24Vdc powered or externally 240Vac powered options.
Features
Extends the controls and status of the Odyssey Plus Fire Alarm Control Panel
Up to 30 SmartTerminal’s can be connected to each Odyssey Plus Fire Alarm Control Panel
Large LCD with Backlight
Internal Buzzer
Flush or Surface Mountable Enclosure
Control Enable Key Switch
Controls have tactile and audible feedback

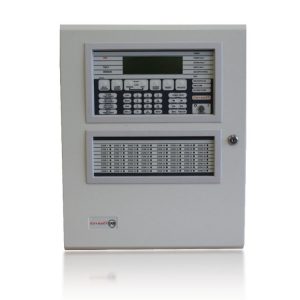

Odyssey Plus is an Intelligent Analogue Addressable Fire Alarm System. It is available in 1 to 8 loop panel options.
The Odyssey Plus panel is suitable for medium to large sized fire detection systems and is compatible with Odyssey series detectors.
Powerful and flexible programming is achieved via Odysseys configuration tool ConfigManager Plus which includes many dedicated pre-engineered programming functions. Simple system programming is easily achieved via the front panel.
Odyssey Plus is configurable as a peer to peer network up to 100 panels/nodes with a maximum of 100 Loops.
Odyessy Plus supports a large range of internal and external optional Panel Add-ons.
• Fire Fan Control Module
• 8-way Switch and Indicator Module
• 32 Zone Alarm Indicator Module
• Zone Disable and Indicator Module
• 16-way Input Board
• 8-way Relay Board
• 8-way Sounder Board
• 8 Zone Conventional Board
• Front panel mounted printer
• SmartTerminal (LCD Repeater)

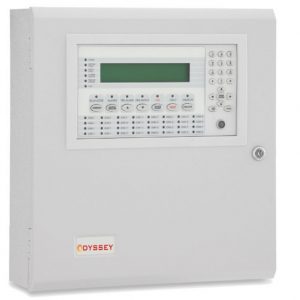

Odyssey is an Intelligent Analogue Addressable Fire Alarm system. The Control panel that is available in 1 or 2 loop options. The Odyssey Panel comes packed with features designed to make itversatile, easy to install, easy to operate and easy to commission.
The Panel is suitable for small to medium sized fire detection systems and is compatible with Odyssey Series detectors.
Programming the Odyssey panel is easily achieved via the front control panel or by using Odyssey configuration software LoopMaster. LoopMaster is an intuitive Windows™ based software that can be installed on laptops. The laptop is easily connected to the FACP via the USB or RS232 communication ports located on the panel’s main termination board.

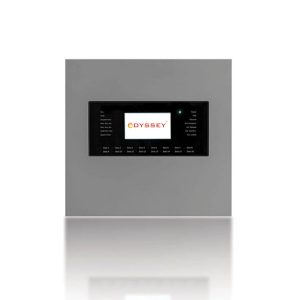

A world first; fully touchscreen EN54 certified fire alarm panel
Why Customers Love This Panel:
Adaptive Design Clean, non-imposing appearance to fit seamlessly with the building’s interior design
Touchscreen A responsive touchscreen with an easy-to-use interface
End-User Access The end user can access details such as; events, alarms, faults and more, with the use of their own 5-digit code
Custom Lighting Fully customisable LED backlights to match seamlessly with the decor
Variety of Languages A vast number of characters and symbols, up to 11 languages
Why Engineers Love This Panel:
Brand Identity Your own company logo can be implemented into the fire panel
Engineer’s Dream Programming of the panel can be completed with as little as four touches
Expandability For easier management on a large scale fire system, up to 128 panels can be connected to a network loop
Detailed Information A touch of the device icon will show information such as % of dust in device. Maintenance schedule can also be planned within the panel
Operator Menu Simple operator menu designed for convenience, with two login access codes; one for the end-user and one for your engineers
Cloud Based Programming The panel can be programmed from a computer/laptop, and details can be viewed remotely – allowing for easier technical support

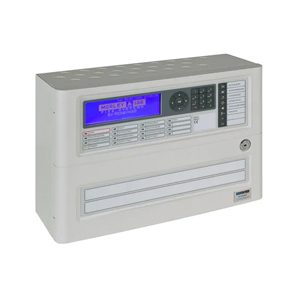

The Morley-IAS DX Connexion panel is ideally suited for use in the protection of small to medium sized buildings. All in all, a compact, high performance, feature rich, economical fire alarm control panel designed to help both
the installer and the end user.
The DX Connexion is an enhancement of the Morley- IAS Dimension panel range, connecting the traditional Morley-IAS qualities of reliability, flexibility and value with advanced features and intuitive functionality.

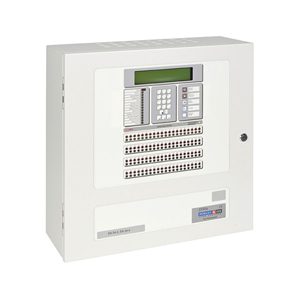

The ZXSe range of analogue addressable fire alarm control panels have been designed and constructed around proven and reliable microprocessor technology. This simple approach has produced a modular, scalable fire alarm platform suitable for protecting all types of premises.
Supporting a total of five industry leading protocols, Apollo, Hochiki ESP, Morley-IAS and System Sensor, allows
fire detection devices to be independently selected based on performance or aesthetic appeal.
